LoooSeR Posted October 5, 2023 Report Share Posted October 5, 2023 So Iranians finally tested their Karrar UAV with AA loadout - they used missile from SHORAD/ short range AA system, attached it to UAV and launched it from UAV at a target. Spoiler Quote Link to comment Share on other sites More sharing options...
mr.T Posted October 5, 2023 Report Share Posted October 5, 2023 Iranians have Pickup launch option for many of their drones including shaheds 131 and 136 , might actualy be easyer to load up bunch of pickups than the launch truck also no booster needed saving bunch of $$ in the process. Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted October 6, 2023 Report Share Posted October 6, 2023 On 11/19/2022 at 1:56 PM, mr.T said: A new Shahed-133 drone was demonstrated in Iran , Armed with Sadid-345 guided aerial bombs with TV guidance and a range of about 6 kilometers. The drone itself is capable of operating at a distance of up to 1,500 kilometers for 12 hours. Launcher for drones are pickups with drone cradle, which allows launch drones from any straight piece of road. Spoiler A bit more on Shahed-133 Quote Iranian exercises with their multi-use small attack drone armed with 2 guided bombs, UAV is called Shahed-133 Spoiler Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted October 12, 2023 Report Share Posted October 12, 2023 Quote MOSCOW, October 11. /TASS/. Russian specialists have created a high-speed unmanned aerial vehicle "Tubus", launched from a portable installation, to destroy enemy armored vehicles and artillery deep in the front. A source in the military-industrial complex reported this to TASS. "Tubus" is designed to destroy armored vehicles and artillery. The flight speed of the device is 250-300 km/h. There are no analogues in Russia now, other drones fly at a speed of 100-150 km/h, respectively, they are visible and easier to shoot down with small arms. The "Tubus" reaches its target quickly, and it is very difficult to shoot it down. Flight range - 30-40 km. Accordingly, he will be able to effectively fight enemy artillery in the depths of the front, which is the biggest problem now,” the TASS interlocutor emphasized. The weight of the device is 10 kg, the weight of the launcher is 5 kg. “Let’s put it this way, people are happy with this. Similar grenade launchers weigh about the same. The product is portable. I fired it, threw it away and forgot about it,” the source noted. According to him, “Tubus” has successfully passed internal tests, and in the future it is planned to use it in a special operation zone. “In two months, official tests will take place in the SMO zone,” the TASS source said. Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted October 18, 2023 Report Share Posted October 18, 2023 Forpost-RU with UAB-20 OFL guided bombs Spoiler Quote Link to comment Share on other sites More sharing options...
mr.T Posted October 20, 2023 Report Share Posted October 20, 2023 Tandem warheads used https://streamable.com/xovikt https://streamable.com/w5g0mw Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted October 25, 2023 Report Share Posted October 25, 2023 On 10/5/2023 at 1:20 PM, LoooSeR said: So Iranians finally tested their Karrar UAV with AA loadout - they used missile from SHORAD/ short range AA system, attached it to UAV and launched it from UAV at a target. Reveal hidden contents Photos of Rasul project - arming Karrar UAV with AD-08 AA missile. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted October 26, 2023 Report Share Posted October 26, 2023 Quote During the flight, which lasted more than 12 hours, the hybrid UAV ZALA 421-16E5G covered a distance of more than 1,130 kilometers. During the flight, the technique of simultaneous use of the device by two flight squads with a new high-speed communication, control and relay system implemented at over-the-horizon control points located in different regions of the Russian Federation was tested. The implementation of such a system, where the complex operators are located at a distance of up to 500 kilometers from the launch site, reduces the consumption of device resources, minimizes the human factor and optimizes the staff of operating units. Placard also shows that UAV can process some data with AI (i guess target recognition using NN-based AI), have hybrid engine, 3 level nav system (not sure what it means) different recon payloads (camera, thermal imager, LIDAR), video data can be transmitted to 100+ km range and videofeed can be transmitted with repeaters. Speaking about target recognition, current Zala UAVs (recon and kamikaze models) already use AI system to do that. Quote Link to comment Share on other sites More sharing options...

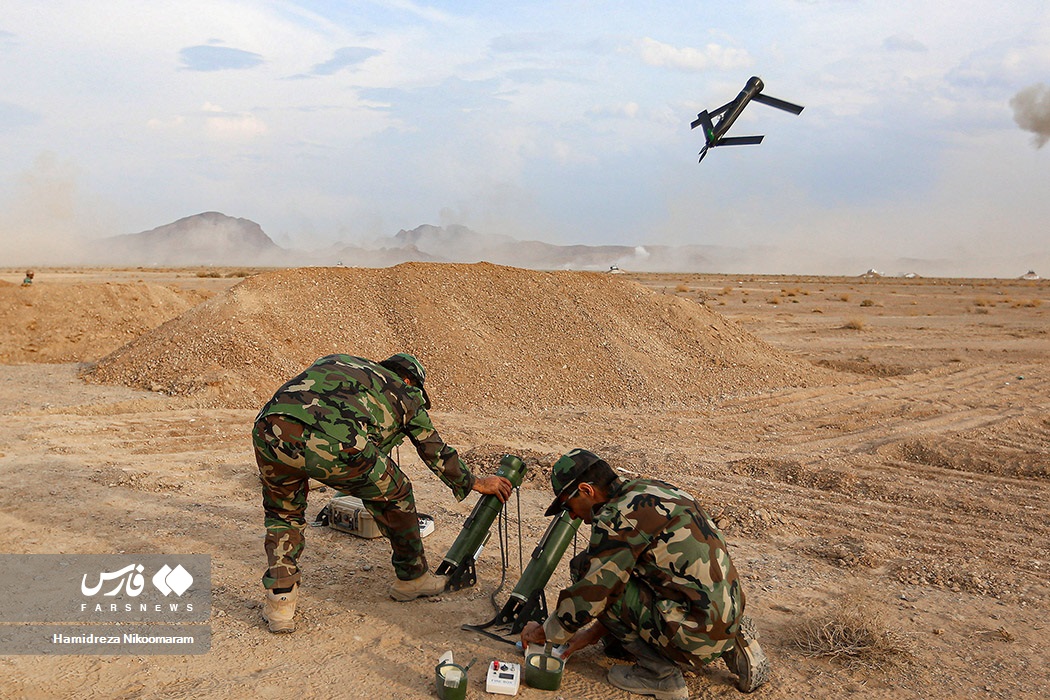

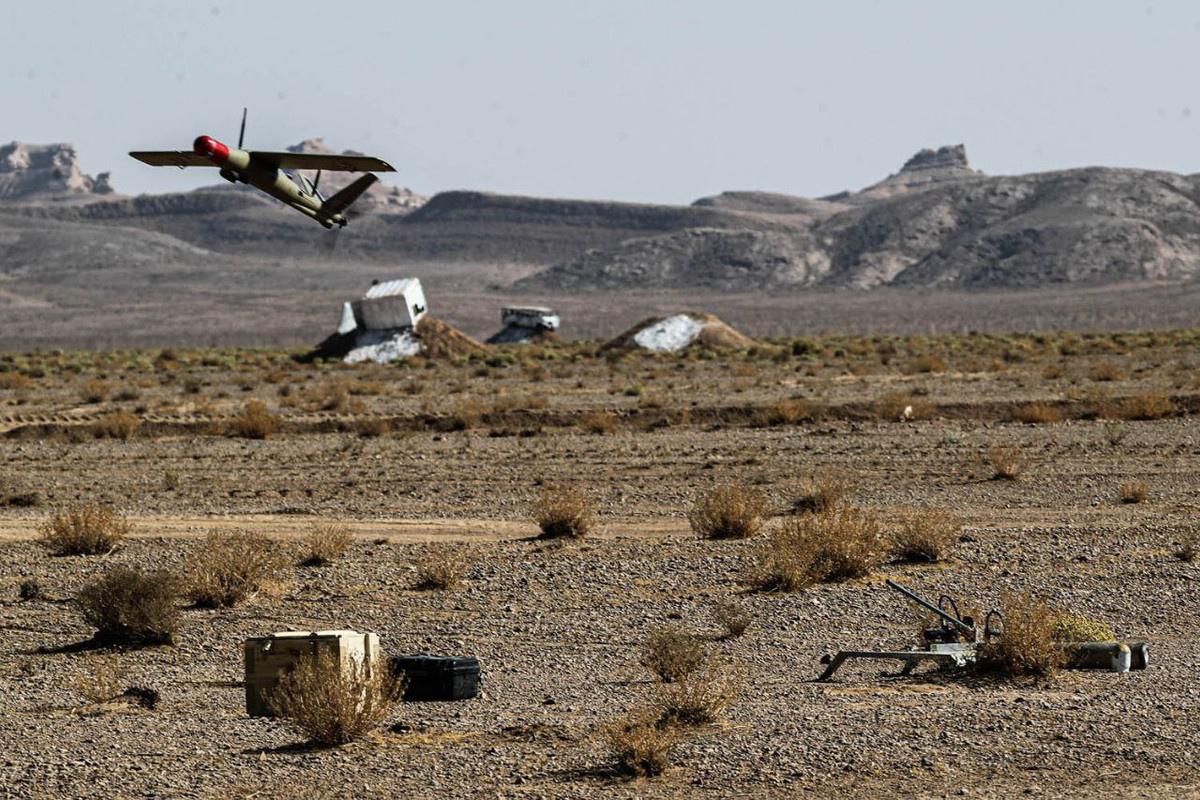

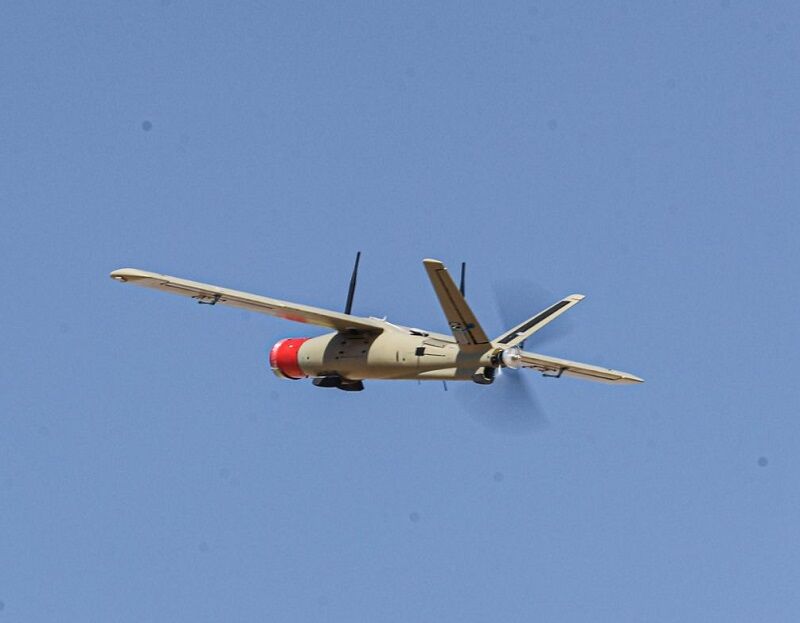

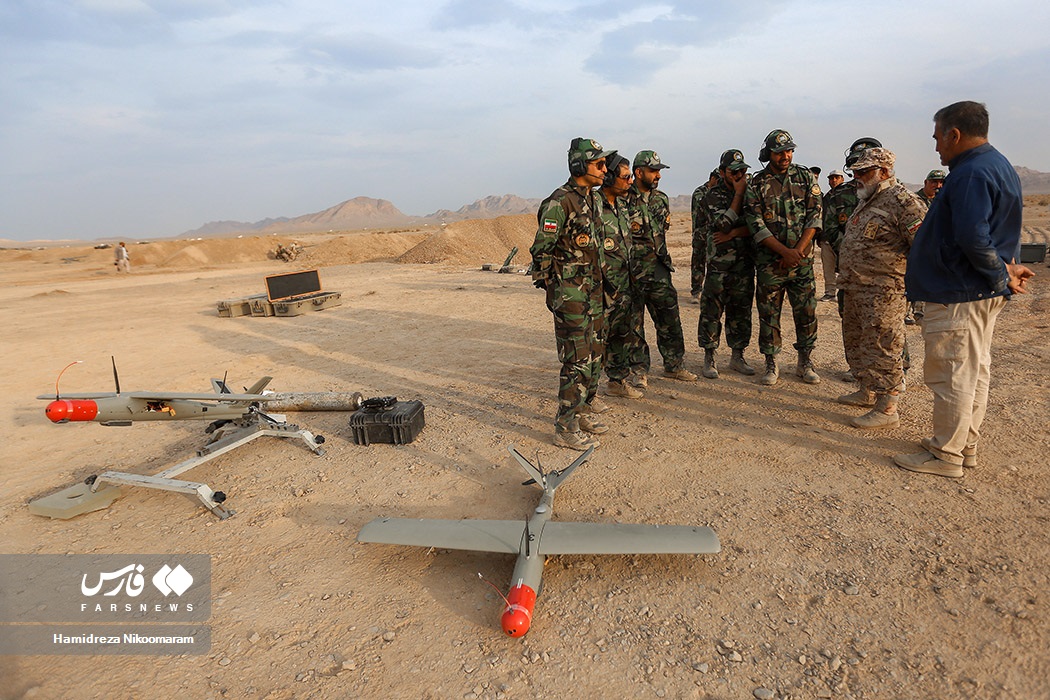

LoooSeR Posted October 29, 2023 Report Share Posted October 29, 2023 Arash-2 launch during recent Iranian army exercises. Sina loitering munition launch. Quote The launch of the Fateh loitering ammunition, at least the Iranian media reported that there were launches of the Sina and Fateh loitering ammunition. Previously, this kamikaze drone was known as Zhoobin, perhaps the name was changed after some modification, or simply these are different names for variations of drones for the Navy and ground forces in this case. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted November 11, 2023 Report Share Posted November 11, 2023 TB3 Spoiler Quote Link to comment Share on other sites More sharing options...

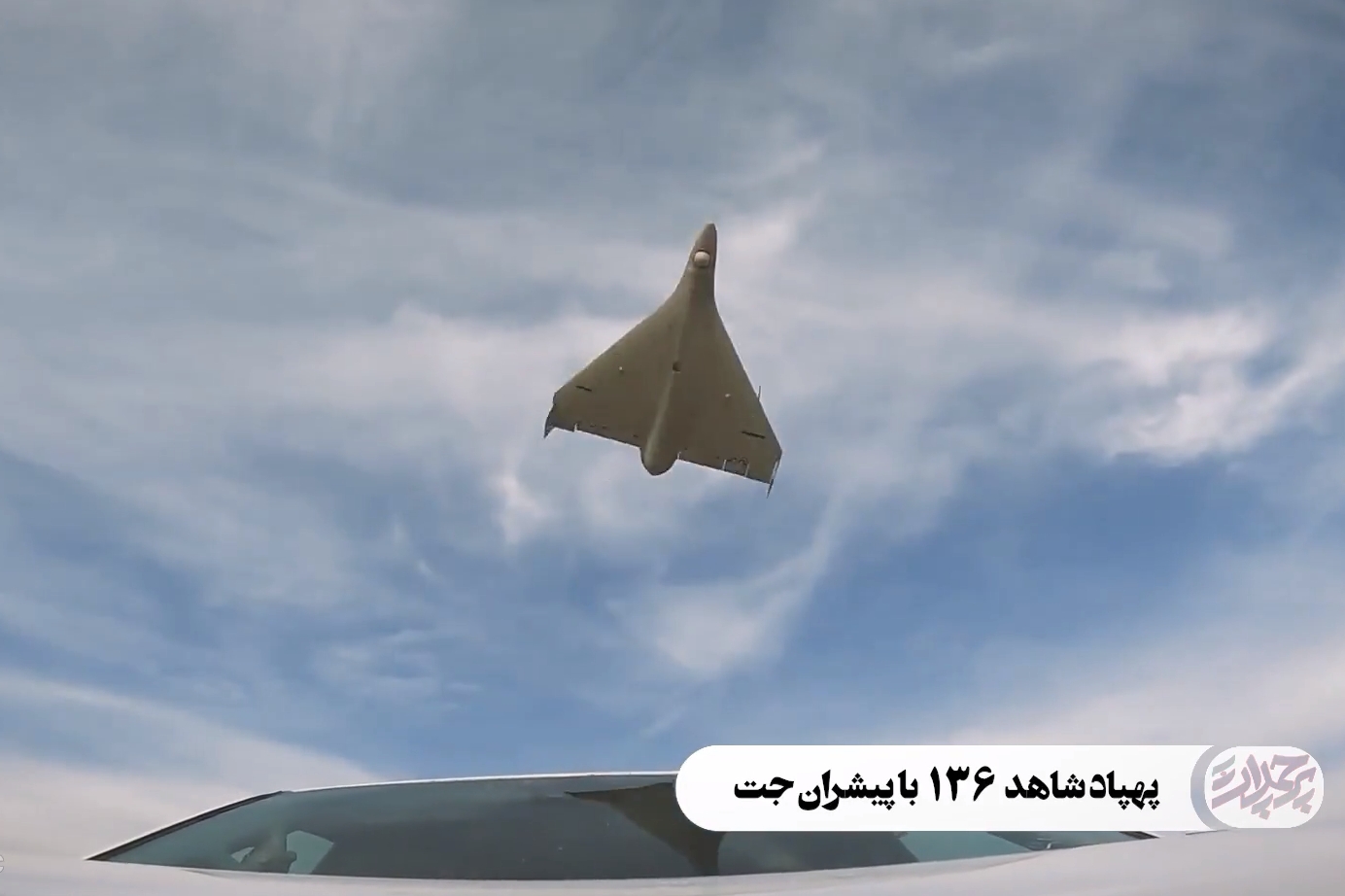

LoooSeR Posted November 14, 2023 Report Share Posted November 14, 2023 Jet powered Shahed 136 version, here optical station is visible under nose section, for terminal guidance. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted November 15, 2023 Report Share Posted November 15, 2023 Additional Shahed/Kamikaze drone production line in Elabuga looks like is completed. Orlan-30 in Dubai. Optical station with laser designator is visible. Used for target illumination for Krasnopol laser guided artillery round. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted November 19, 2023 Report Share Posted November 19, 2023 POV: Your friends are currently in heavy combat in Ukraine. Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted November 20, 2023 Report Share Posted November 20, 2023 New Shahed 238s with jet engines and what looks like optics. Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted November 23, 2023 Report Share Posted November 23, 2023 Zala almost full kit. No Italmas of Izd 53. Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted December 9, 2023 Report Share Posted December 9, 2023 ZALA group CGI pics showing use of Lancets in Ukraine. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted December 9, 2023 Report Share Posted December 9, 2023 Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted December 22, 2023 Report Share Posted December 22, 2023 On 10/25/2023 at 3:28 PM, LoooSeR said: Photos of Rasul project - arming Karrar UAV with AD-08 AA missile. Reveal hidden contents UAV-based air defense system. Interesting. Quote In Iran, a ceremony was held for the adoption by the Army Air Defense Forces of the first batch of modified Karrar jet UAVs armed with missiles from the Majid\AD-08 anti-aircraft missile system. Work on creating an air defense system based on this UAV was carried out earlier as part of the Rasul project. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted December 29, 2023 Report Share Posted December 29, 2023 On 11/21/2023 at 12:51 AM, LoooSeR said: New Shahed 238s with jet engines and what looks like optics. 238, simpler version without optical systems: Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted December 29, 2023 Report Share Posted December 29, 2023 Izdelie-55, new drone from ZALA. Close range version, use same launchers as Izdelie-53, high EW resistance as Lancet. Quote Link to comment Share on other sites More sharing options...
mr.T Posted December 30, 2023 Report Share Posted December 30, 2023 This looks like it will be VTOL Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted January 6 Report Share Posted January 6 Soviet Krylo UAV system. Quote Complex called “PERO WITH MSBR WING”, so the complex cannot find accurate information. Background A regiment of front-line reconnaissance UAVs was withdrawn from Lithuania in June 1993 to the village of Vyazniki, Vladimir province. The regiment was also armed with the "REIS" complex, also known as Tu-143 One of the sources says that this drone (Krylo) managed to take part in the war in Afghanistan, had a combat radius of 90 km, a height of 1000 m, on board a traditional photo camera, a real-time television camera (optionally replaceable to a thermal imaging camera). However, due to some difficulties with operation, the “Wing” did not gain much popularity. The unmanned vehicle of the “Wing” complex was created at the Kazan Design Bureau “Sokol” under the leadership of A.I. Osokin and U.A. Tsarev. The “Wing” variant of the complex was created with the placement of control and launch equipment for aircraft on the chassis of armored vehicles of the MT-LB type. The UAV successfully solved general reconnaissance tasks on the battlefield and near enemy lines. In 1987, the “Wing” complex was put into service, however, its significant disadvantages were the bulkiness of ground equipment and difficulties in organizing the necessary technical support and operation. In this regard, the use of the “Wing” complex was limited. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted January 8 Report Share Posted January 8 On 12/30/2023 at 12:12 AM, LoooSeR said: 238, simpler version without optical systems: Reveal hidden contents Looks like already used in Ukraine Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted January 15 Report Share Posted January 15 Kim with Morning Star-9 and -4 UAVs. Spoiler Quote Link to comment Share on other sites More sharing options...
LoooSeR Posted January 20 Report Share Posted January 20 On 1/15/2024 at 11:13 PM, LoooSeR said: Kim with Morning Star-9 and -4 UAVs. Reveal hidden contents Also: Quote Morning Star-4 is equipped with MiG-21's jet engine R-13-300, or Chinese WP-13. Range of that vehicle with that engine is probably 9000km max. Quote Link to comment Share on other sites More sharing options...
